Manufacturing process of E-paper display 2017 edition


¡Explain E-paper display manufacturing process by illustration
¡Full-cover from basic process to next generation process
¡Cover structure, dislaying mechanism, manufacturing process

¡Easy to look at the file using any PC because of the format of browser, for example IE (Internet Explorer)
¡Possible to access at will from Index Page to detail page
¡Describe these illustrations at 3D image

¡Number of total file are 108 (about 200 page in A4 form equivalent)
¡Illustrations of device structure and process flow are approximately 420

CONTENT


¡Structure, dislaying mechanism, and manufacturing process (general theory) of E-paper display

Charged toner type
œMicrocapsule type electrophoretic display
@ Segment panel, PM-panel, AM-panel, Full-color AM-panel, Front driving type

œToner moving type display
@ Segment panel, PM-panel, AM-panel, Color PM-panel, Color AM-panel

œIn-plane type electrophoretic display
@ AM-panel, Full-color AM-panel

œColor liquid type electrophoretic display
Segment panel, PM-panel, AM-panel, Full-color PM-panel, Full-color AM-panel (R, G, B independent method, CF method)

œHybrid-plane type electrophoretic display
@ Reflective display (AM-panel, Full-color AM-panel), Full-color reflective display by using PL phenomenon

œTwisting-ball type display
@ Segment panel/PM-panel

Liquid crystal display (LCD) type
œPolymer network LCD
@ PM-panel, AM-panel
œCholesteric LCD
@ PM-panel, Color PM-panel (Stacked layer type, single layer type)

œFerroelectric LCD
@ PM-panel

Electrochemistry type @
œElectrolytic precipitation type display
@ PM-panel, Color PM-panel

œOrganic electrochromic display
PM-panel, Color PM-panel, Color AM-panel

œInorganic electrochromic display
@ PM-panel, Multi-color PM-panel

œHybrid electrochromic display
@ PM-panel

Electrowetting display (EWD) type
@PM-panel, Color PM-panel with CF, Color AM-panel with CF, R, G, B independent color PM-panel, R, G, B independent color AM-panel, Color AM-panel with COA

¡Pocess flow of E-paper display (particular theory)@@
œForming process of transparent electrode
œForming process of metal electrode @
œForming process of TFT (a-Si TFT, IGZO-TFT, Organic-TFT)@@

œForming process of black matrix (BM)
œForming process of coloring layer
œForming process of overcoat layer
œPatterning process of R, G, B-PL layer

œForming process of insulator layer
œForming process of rib
œForming process of bank
@
œInjection process of LC material
œFilling process of Ch-LC material
œForming process of R, G, B Ch-LC layer
œPatterning process of R, G, B sub-pixel
œDropping process of R, G, B color oil
œFilling process of dispersion liquid
œFilling process of electrolyte
œFilling process of toner
œDeposition process of inorganic alignment film

œForming process of seal layer
œForming process of post-spacer
œDispersion process of spacer-ball
œPolymer network process

¡What's structure color H

¡A word of caution in manufacturing of display with flexible substrate

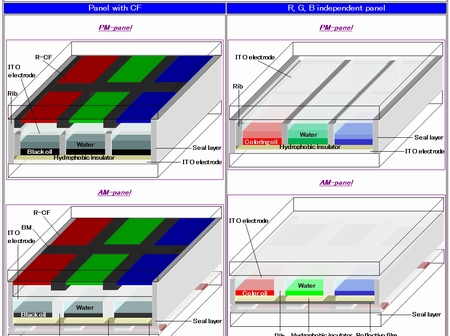

£Panel structure of EWD

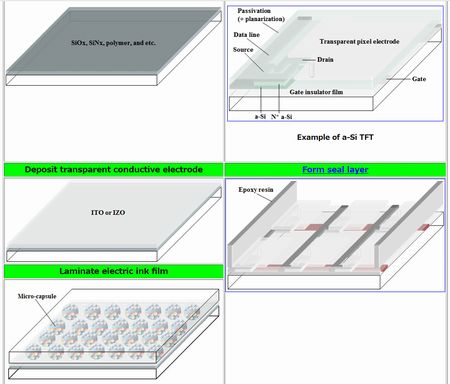

£Process flow of microcapsule type electrophoretic display

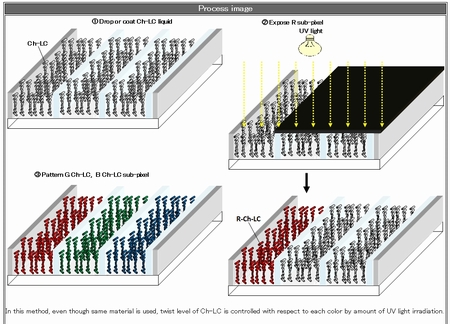

£Forming process of R, G, B Ch-LC layer

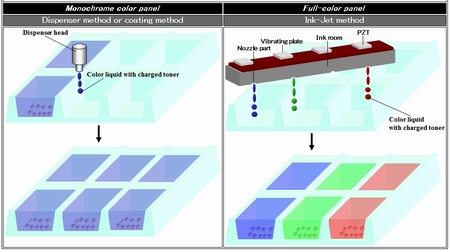

£Dropping process of R, G, B color ink


Full-original CD-ROM

CD-ROM for Windows • Macintosh
PriceF20,000 yen
Release dateFJanuary 15th 2017

While you order this CD-ROM, please input below points and send to info@e-express.co.jp.

CD-ROMF E-paper display manufacturing process
Campany's NameF
SectionF
NameF
AddressF
TELF
FAXF
e-mail addressF

Remark

If you are domestic customer, we will send the product and invoice. Please pay to ours account by bank remittance until specified date.

If you are overseas customer, we will send E-mail to you. Please pay to ours account by bank remittance. If we confirm bank transfer, we send the product immediately.

E Express Inc.
725-146 Kioroshi, Inzai-City, Chiba-Prefecture, 270-1326, Japan
TELF+81-90-4203-4633(President Kameya)
E-MailFinfo@e-express.co.jp
