Manufacturing process of Perovskite solar cell 2025

šExplain manufacturing process of Perovskite solar cell by illustration
šFull-cover from basic process to next generation process

šCover structure, substrate, material, manufacturing process, and encapsulation method
šIndicate molecule structure of organic material

šEasy to look at the file using any PC because of the format of browser, for example IE (Internet Explorer)
šPossible to access at will from Index Page to detail page
šDescribe these illustrations at 3D image
šNumber of total file are 24 (about 70 page in A4 form equivalent)
šIllustrations of device structure and process flow are approximately 130


MAIN CONTENT


¡Basic structure and Kind of perovskite solar cell

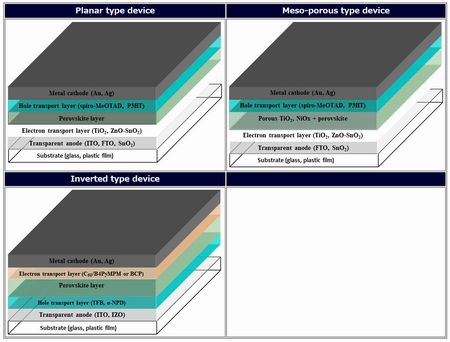

Planar type device
Meso-porous type device
Inverted type device

PSC using Pb (Pb-PSCs)
PSC using Sn perovskite (Sn-PSCs)
PSC using Ge perovskite (Ge-PSCs)
PSC using AgBiI (SBI-PSCs)

¡Process flow (general theory)
Planar type device
Meso-porous type device
Inverted type device

¡Process flow (general theory)
Forming process of transparent anode
Forming process of electron transport layer (Dry process, Wet process)
Forming process of perovskite layer (Dry process, Wet process)
Forming process of hole transport layer (Dry process, Wet process)
Forming process of electron transport layer + perovskite layer)
Forming process of metal cathode

Seal layer forming process
Glass encapsulation process
@ Glass { glass
Solid encapsulation process
@ Single substrate device with glass
@ Single substrate device with plastic film
Thin film encapsulation process
@ Single substrate device with glass
Scribe and break process


£Process flow sample


£Process flow sample


£Device structure


£Process flow sample


£Process flow sample

Full-original Data

MediaFCD-ROM or USB memory
PriceF20,000 yen
Release dateFJanuary 4th 2025

While you order this CD-ROM, please input below points and send to info@e-express.co.jp.

CD-ROMFManufacturing process of Perovskite solar cell
Campany's NameF
SectionF
NameF
AddressF
TELF
FAXF
e-mail addressF
MediaFCD-ROM or USB memory (Please erase CD-ROM or USB memory.)

Remark

If you are domestic customer, we will send the product and invoice. Please pay to ours account by bank remittance until specified date.

If you are overseas customer, we will send E-mail to you. Please pay to ours account by bank remittance. If we confirm bank transfer, we send the product immediately.
